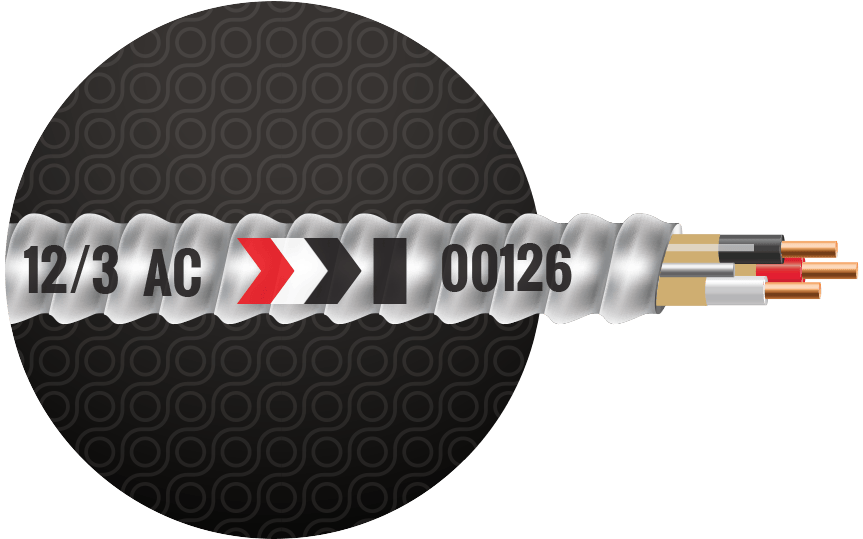

Armored Cable with two-, three-, or four-circuit THHN/THWN conductors, and a bare aluminum bond wire in constant contact with the armor, allowing it to serve as a grounding path. Intended for use in accordance with the National Electrical Code®. Conductors are individually wrapped with a moisture resistant, flame-retardant paper, and cabled together with marker tape displaying the required print legend. The bare aluminum bond wire is cabled on the outside of the paper wrapped conductors, and interlocked aluminum armor is applied over the entire construction.
Conductors
Solid Conductors:
- Soft, uncoated copper per ASTM B3
Stranded Conductors:
- Uncoated copper per ASTM B3, B8, B787
Bare Grounding/Bonding Conductor:
- 8000 Series aluminum alloy per ASTM B800. Size 16 AWG
Insulation
Nylon (polyamide) color-coded THHN/THWN-2. Sizes 14 AWG–6 AWG
Jacket
Aluminum-based alloy armor applied over the complete assembly
Industry Standards
UL4: E537299
UL83: E15119
ASTM B3, B8, B787, B800
NFPA 70 (National Electrical Code), Article 320
Federal Specification A-A59544
Surface Print
Armor Coding System:*
- Sequential Footage: shown every two feet
- Footage Marker: Black line = aluminum armor
- Chevron Colors: indicate number & color of conductors
- Chevron Direction: indicates recommended pull direction
- Cable Size: indicates wire gauge & number of conductors
*PATENT PENDING
