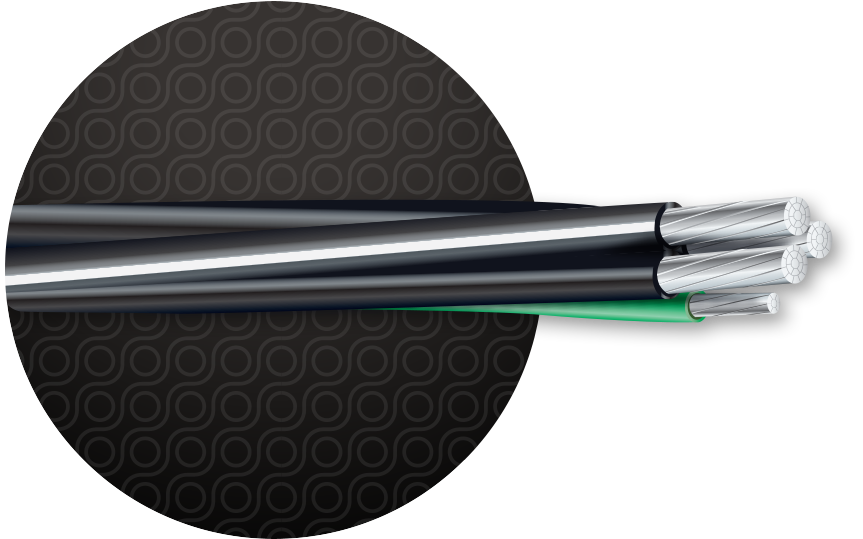

Mobile Home Feeder Aluminum

Mobile Home Feeder Aluminum

Aluminum

Where To BuySpec Sheet PDF
Applications

May be used for connecting mobile homes to an electrical supply where permanent wiring is required. Not to exceed 600 volts when installed as specified by the National Electrical Code® and other applicable standards. Phase, neutral and grounding conductors are twisted together with a left-hand lay, with a lay length not greater than 60 times the outside diameter of one phase conductor.

Mobile home feeder cable may be directly buried. Insulation is rated 90°C.

Conductors

Compact stranded AA-8000 series aluminum alloy with cross-linked polyethylene insulation.

Phase conductors are black and black with a red stripe, neutral conductor is black with a white stripe, and the grounding conductor is solid green.

Industry Standards

UL 44: E125474
UL 854: E11098
ASTM B-800
ASTM B-801
Federal Specification A-A-59544
NFPA 70 (National Electrical Code®)

Surface Print

Sample: 4/0 AWG AA-8000 AL TYPE USE-2/RHH/RHW-2 600V (UL)
