Applications
SPT-1 and SPT-2 Lamp Wire is intended for use in small household appliances, including lamps, clocks and fans not subject to hard usage, as specified by the National Electrical Code® (NEC) and other applicable standards.
SPT-1 and SPT-2 conductors are rated for use up to 60°C.
Conductors

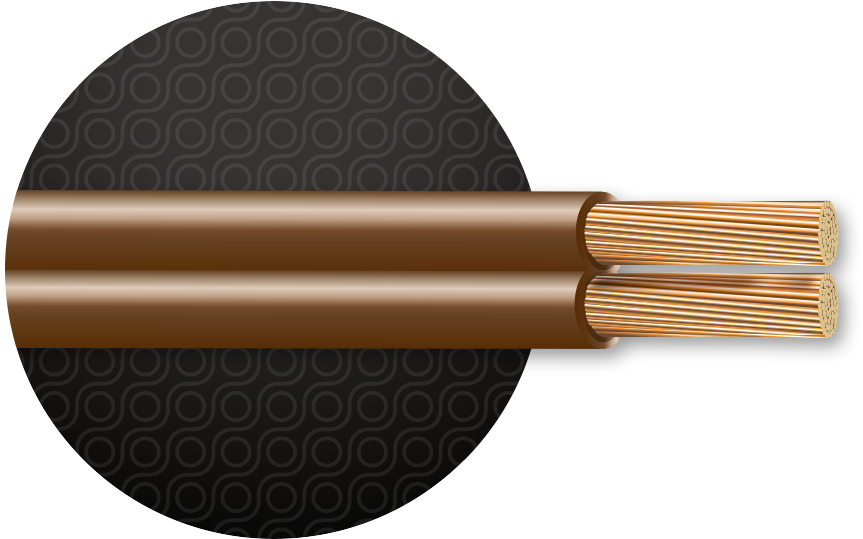

SPT-1: Two stranded copper conductors laid parallel.
SPT-2: (Premium Grade) Two stranded copper conductors laid parallel.
Insulation
SPT-1: Heat and moisture resistant PVC insulation with a thickness of 30 mils.
SPT-2: Heat and moisture resistant PVC insulation with a thickness of 45 mils.
Industry Standards
UL: E111386
UL Spec. No. 62
NFPA 70 (National Electrical Code)
CSA Spec. No. 49
CSA Spec. C22.2
Surface Print
E-111386 2/C 18 AWG (0.824mm²) 60C 300V (UL) SPT-1 C(UL) VW-1
